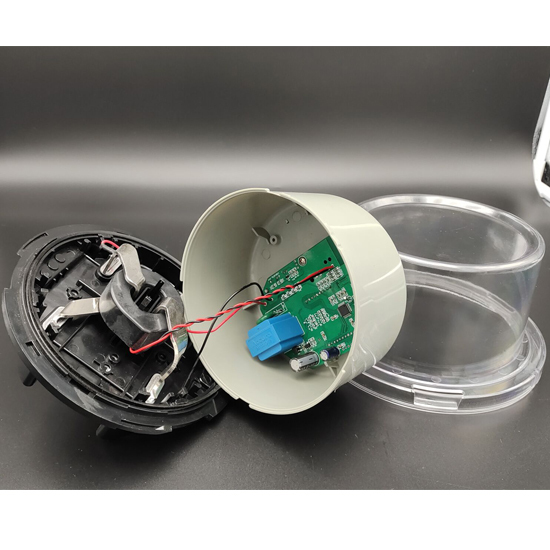

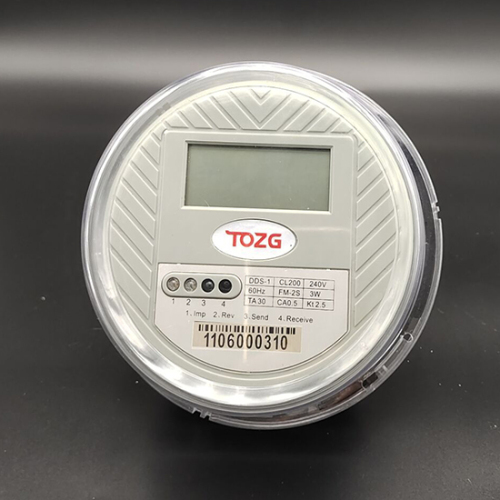

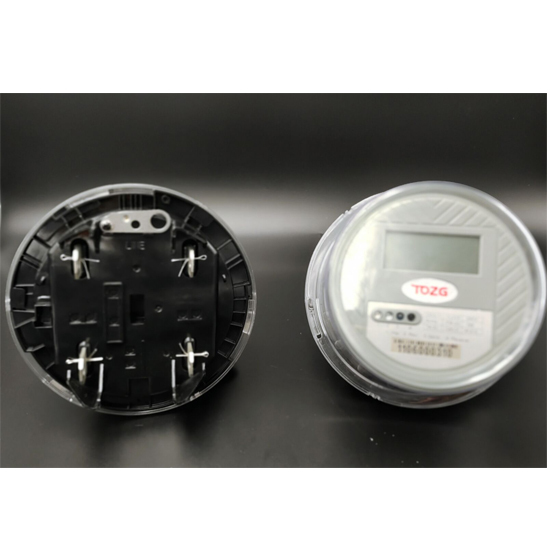

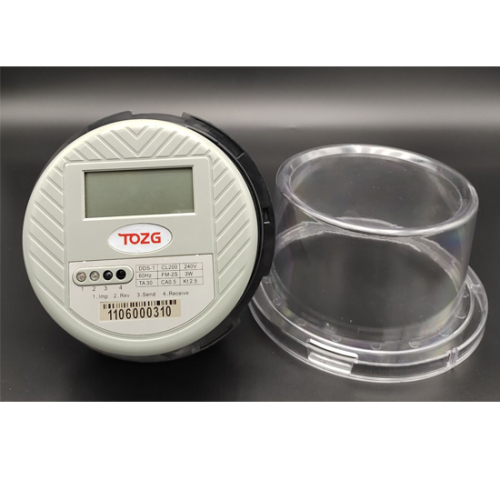

Single phase 3 wire Cl200 30/200A Ansi Socket Meter FM 2S 3W

Item No.: 00151
Single Phase Socket Type kwh Meter
 ANSI Class 0.5 Accuracy
 Arrow indicator for energy direction flow
Visible LED
 Instantaneous value measurement and display(kw.V A)r
 Contains total active energy register and  active energy register
Available Met
Description
Description
Main Functionalitiesr
Single Phase Socket Type kwh Meter
 ANSI Class 0.5 Accuracy
 Arrow indicator for energy direction flow
Visible LED
 Instantaneous value measurement and display(kw.V A)r
 Contains total active energy register and  active energy register
Available Meter Forms
FM 1S . 2W . CLASS 100
FM 1S . 2W . CLASS 200
 FM 2S . 3W . CLASS 100
FM 2S . 3W . CLASS 200
Anti-tamper Features ( optional )
Missing Neutral - Detect and record energy consumption even with missing neutral on input side , load side , or both Bypassed - Detect and record actual energy consumption even when one line is bypassed
oppositive -detect and oppositive record  energy flowas normal energy consumption
ValAccuracyue ValCA0.5 ue
Voltage
Reference voltage
Operating voltage range

240V
70%-120%Un (168V – 288V)
Current
Test amperes (TA)
Current classes
Starting current

15A ,30A
100A ,200A
50mA for CL100, 100mA for CL200
Frequency 60HZ
Power Consumption
Power consumption in voltage circuit (active)
Power consumption in voltage circuit (apparent)
Power consumption in current circuit

2 W
10 VA
1 VA
Meter Constant 1000 imp/kWh
Wiring System 2 wire line to neutral (240V – 0V)
2 wire line to line no neutral (120V – 120V) (center tap on distribution
transformer’s secondary should not be connected to ground)
3 wire line to line with neutral (120V – 0V – 120V)
LED Visible IR LED test pulse for energy
Communication Interface
Optical communication
Infrared communication
RF (868 MHz)
IEC62056-21 encryption
IRDA
IEC
Temperature
Operation range
Limit range for storage and transport
-2565
-4070

Humidity Up to 95% non-condensing
Housing
Protection degree
Meter cover
IP65 (Outdoor Installation)
Opaque polycarbonate(PC) + glass fiber with a transparent window

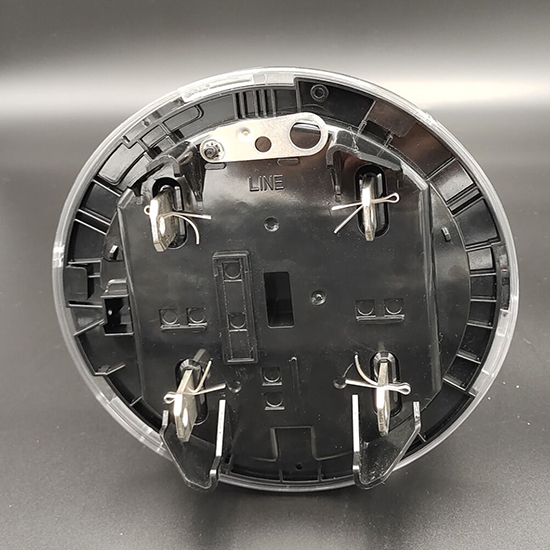

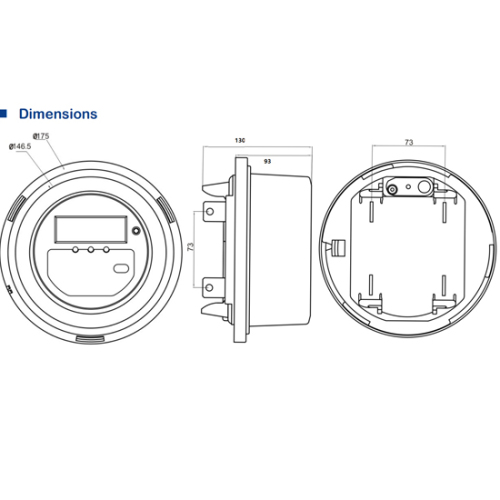

Dimension 175mm x 175mm x 130mm
Software Supply ,and install computer
