Nicaragua NEMA type 3R Three phase 20A 13jaws Ansi Square Meter base Ct type

Item No.: 00118
Costa Rica NEMA type 3R 200A 7jaws Square Meter base
1 square base thickness : Hot dip galvanized steel
2 Meter socket jaws Cooper /brass
3 Ansi meter base terminal :Bakelite
4 Screw :metal /copper
Description
Description
Philippines NEMA type 3R Three phase 200A 7jaws Ansi Square Meter base

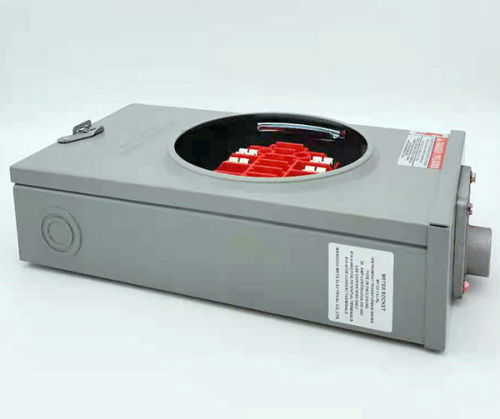

NEMA type 3R enclosure constructed from #16 galvanized steel sheet with light gray-powder coat finish ,units are furnished with 2" hub opening as standard

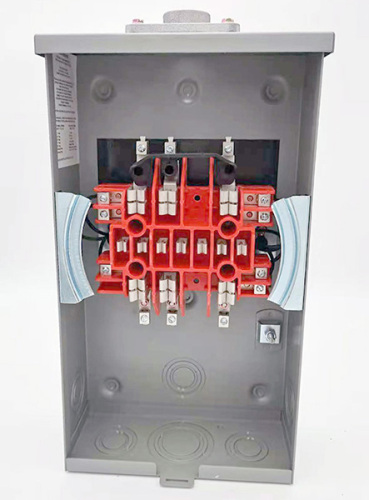

1.interior:with meter guides for easy meter insertion, double action terminal jaws (deep-type with reinforced spring clip)made of high strength copper alloy designed for positive engagement with meter blade, mouting base is made of glass polyester for phenolic terminal blaock with excellent dielectric properties  , terminal are tin-plated copper all alloy and rated for 200amp and 600volts design,terminal connection capacity will accommodate wire from AWG#6 to 4/0 AWG with removable terminal clamps for easy laying of wire into the terminal connector , tin-plated hexagonal head dome point screw

2. mounting bodies: provided with at least for 4pcs 1/4" mounting hold at the back with 1/8" of mounting base between the back of the socket enclosure and mounting surface . neutral terminal is mechanically riveted and bolted to the socket enclosure to assure firm and positive electrical bonding

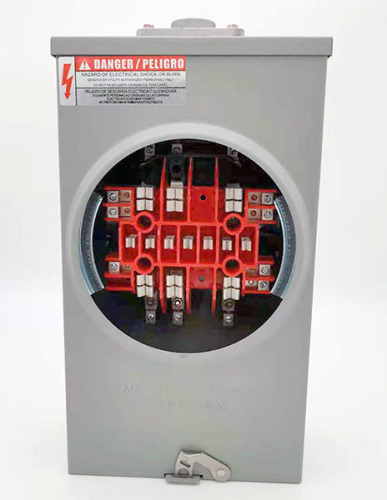

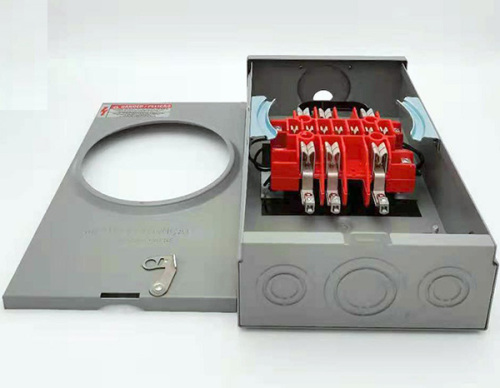

3.cover :units are provided with one piece ringless type cover with light gray powder coat paint finish with stainless steel swinging latch with sealing provision using wire seals  pladlock type seals or padlock to secure the cover to the socket body

4.international standard such as NEMA 250 ANSI CL12.7 UL.414
Application Meter Socket 13jaws 20A
Standard UL Listed;Type 3R
Voltage Rating 600 Volts Altemating Cument
Amperage Rating 20 Continuous Ampere
Phase 3Phase
Frequency Rating 60 hertz
Size 38.4 cmL*20.6cm W*10cm H
Cutout Size No Main Breaker
Terminal Layin
Insulation Glass Polyester
Mounting Surface Mount
Enclosure G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity 13Terminal
Bypass Type Auto Bypass
Number of Meter Positions 1Position
Equipment Ground Ground Lug
Hub Opening 11/4Inch Hub
Line Side Wire Range 12-10AWG
Line Side Wire Range 12-10AWG
