1. Product Overview
Our CH 24 Way Load Center is a large-capacity residential distribution panel designed to meet North American single-phase 120/240V power demand, fully matched with CH series plug-in breakers.
It acts as the central power hub for villas, multi-bedroom houses, duplexes and small shops, separately distributing power to lighting, sockets, air conditioning and equipment circuits, while offering reliable overcurrent and short-circuit safety protection.

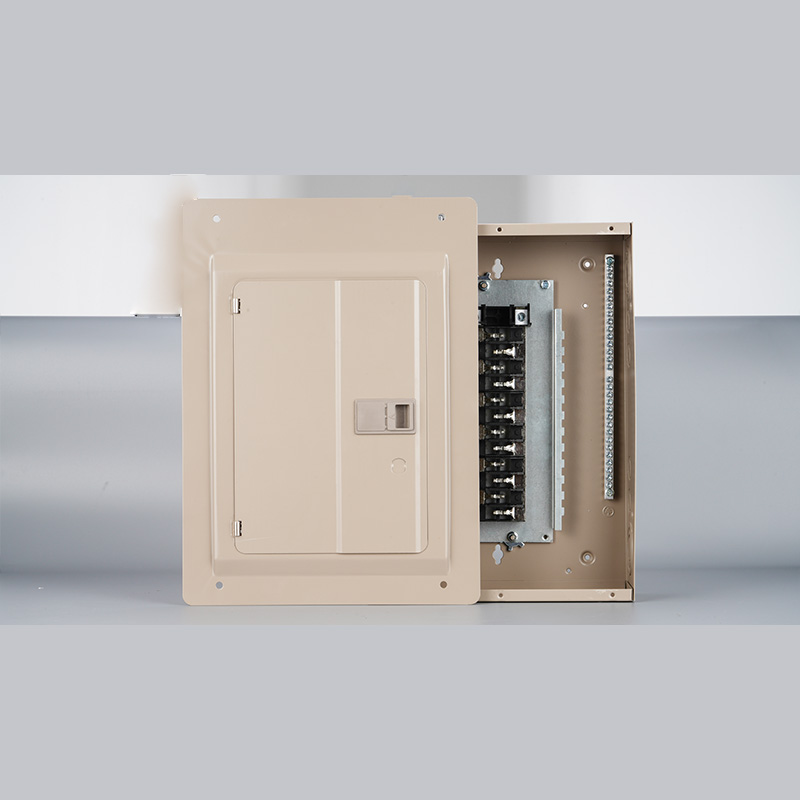

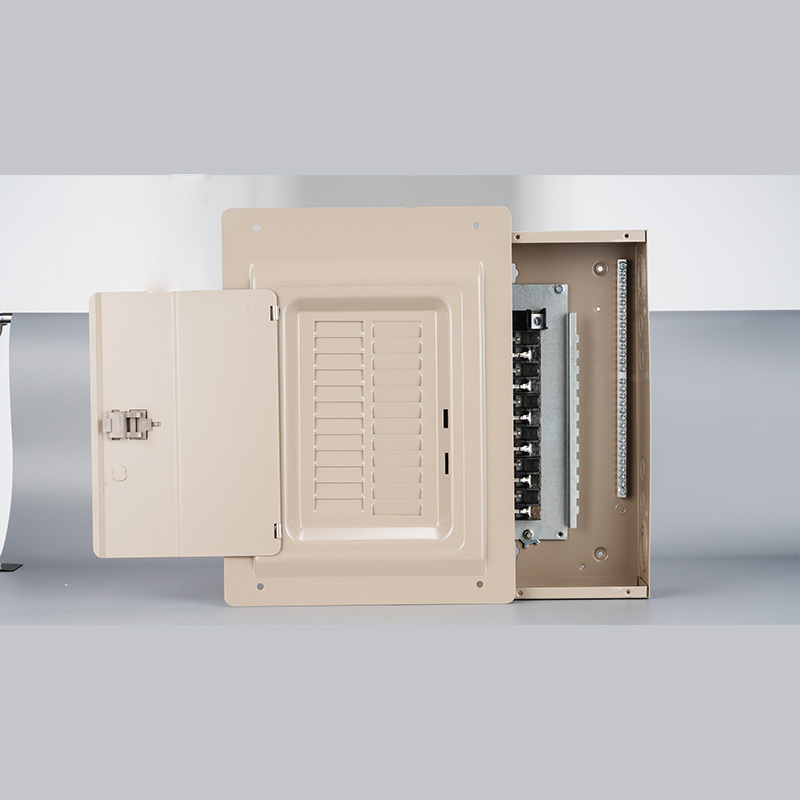

The enclosure adopts thickened cold rolled steel with beige anti-corrosion electrostatic coating, equipped with hinged safety outer door and small hidden service cover to prevent accidental electric shock. Factory pre-assembled full-length copper neutral bar and ground bar simplify wiring. Two optional configurations: Main Lug Only (MLO) and Main Breaker version to satisfy different incoming power setups.
2. Core Technical Specs
- Model: CH 24 Way Load Center
- Circuit Capacity: 24 positions (support single pole / twin tandem CH breakers)
- Execution Standard: US ANSI electrical standard
- Rated Voltage: 120/240V Single Phase AC
- Enclosure Material: 1.2mm thick cold rolled steel
- Surface Finish: Anti-rust baked enamel coating, scratch resistant
- Mount Type: Indoor surface / flush wall mount
- Bus Bar: Pre-installed full copper neutral bar + full copper ground bar
- Door: Hinged metal front door with child safety small cover
- Compatible Breaker: All CH style plug-on miniature circuit breakers
- Optional Type: Main Lug Only (MLO) / Integrated Main Breaker
3. Core Selling Points
- 24 Large Circuit Capacity
24 positions meet power distribution needs of large villas, multi-unit apartments and small commercial spaces, freely collocate single-pole, double-pole and twin CH breakers for flexible circuit planning.
- Full Compatibility with CH Breakers
Exclusive structure for CH series plug-on breakers, stable clamping, easy replacement and maintenance without extra adapters.
- Heavy-Duty Anti-Rust Steel Housing
Thick steel plate structure resists impact and deformation; uniform beige powder coating prevents rust for long-term indoor use. Hinged door for easy access, hidden small cover avoids accidental contact with live parts.
- Pre-Assembled Full Copper Bus Bars

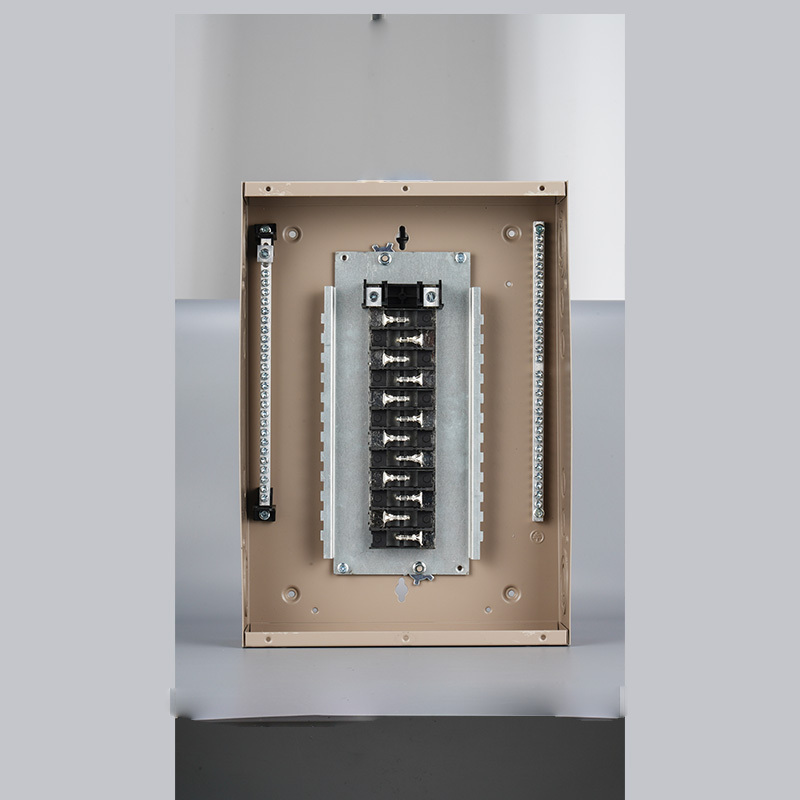

Complete long copper neutral and ground bars come pre-installed out of factory, dense terminal screws allow multiple wire connections, tidy and firm wiring.
- Two Configurations For Choice
- MLO (Main Lug Only): Reserved lugs for external main switch, suitable for projects with separate main disconnect.
- Main Breaker Type: Built-in space for main breaker, direct connection to utility power.
- User-Friendly Installation & Wiring

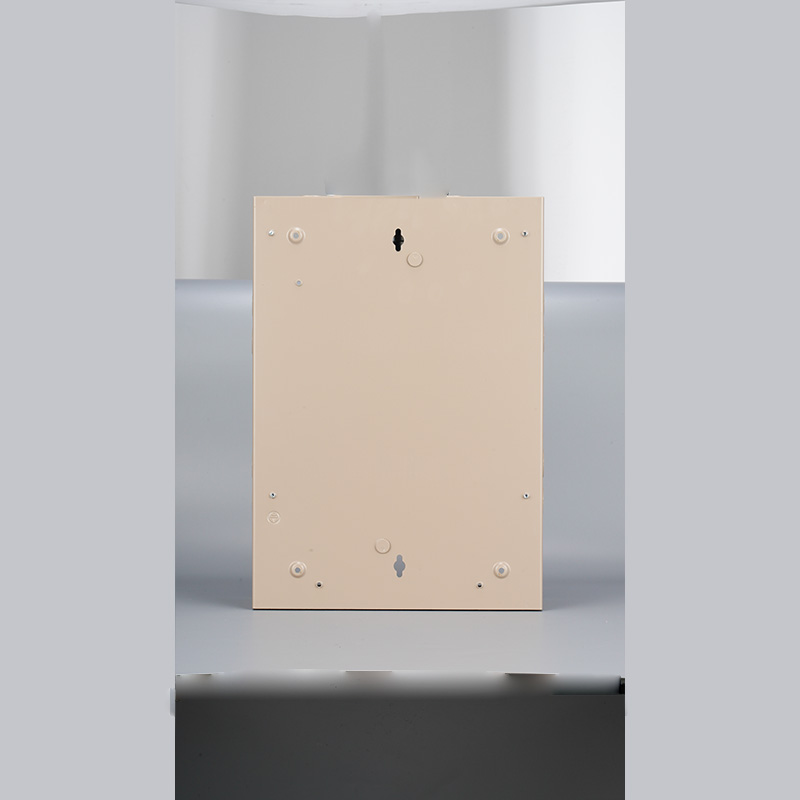

Pre-punched multi-point mounting holes for fast wall fixing; spacious internal wiring cavity leaves enough room for cable routing, greatly cutting electrician installation time.
- Comprehensive Safety Design
Insulated isolation plates separate live components inside the box to avoid short-circuit risks; closed door structure effectively reduces electric shock hazards in daily use.
4. Application Scenarios
- Large villa, multi-bedroom single-family house power distribution
- Duplex, townhouse and apartment electrical renovation
- Small retail stores, offices, garages and light workshops
- North America standard new construction electrical supporting projects
5. Package & Customization
- Export Packing: Independent carton for each unit, reinforced outer cartons for sea transportation
- OEM Support: Custom logo printing on panel door, adjusted internal accessories, customized box color available for bulk orders
- Shipment Port: Ningbo / Shanghai Port, stable fast lead time for mass orders
- QC Control: Full dimensional and structural inspection before shipment to guarantee quality
6. FAQ
Q1: Can this 24-way panel use other brands of breakers besides CH type?
A: This load center is specially engineered for CH series plug-on breakers; breakers with different mounting structures are not compatible.
Q2: Is this panel waterproof for outdoor installation?
A: This is an indoor-only load center without IP waterproof rating. Outdoor waterproof versions can be customized upon request.
Q3: What is the difference between MLO and Main Breaker version?
A: MLO model has no internal main breaker, requiring an external main disconnect; Main Breaker model reserves built-in space for main breaker to connect utility power directly.
Q4: Do you accept customized brand printing on the door?
A: Yes, OEM logo printing is supported once order quantity reaches our minimum MOQ.
