Our CH 16 Way Load Center is a standard residential electrical distribution panel built to North American market requirements, fully compatible with CH type plug-on circuit breakers. It serves as the core power distribution hub for houses, apartments and small retail spaces, centrally distributing branch circuits while delivering comprehensive overcurrent, short-circuit and leakage protection. The enclosure adopts high-strength cold rolled steel with beige anti-corrosion powder coating, featuring a hinged outer door with lockable small cover to avoid accidental electric contact. Pre-installed full-length neutral bar and ground bar simplify wiring operation, pre-punched mounting holes support fast wall installation. We offer two configurations: Main Lug Only (MLO) and Main Breaker type to match different grid access demands.
2. Core Specifications
Model: CH 16 Way Load Center
Circuit Capacity: 16 positions (single pole / tandem CH breakers applicable)
Bus Bar: Full copper neutral bar + full copper ground bar pre-installed
Door Design: Hinged front door with small service access cover
Rated Voltage: 120/240V AC Single Phase
Application: Residential house, villa, apartment, small commercial space
Breaker Compatibility: All CH series plug-in miniature circuit breakers
3. Key Product Features
Universal CH Compatibility Perfect fit for all CH style plug-on breakers, single pole, double pole and twin tandem breakers can be freely collocated to meet different load circuit demands.

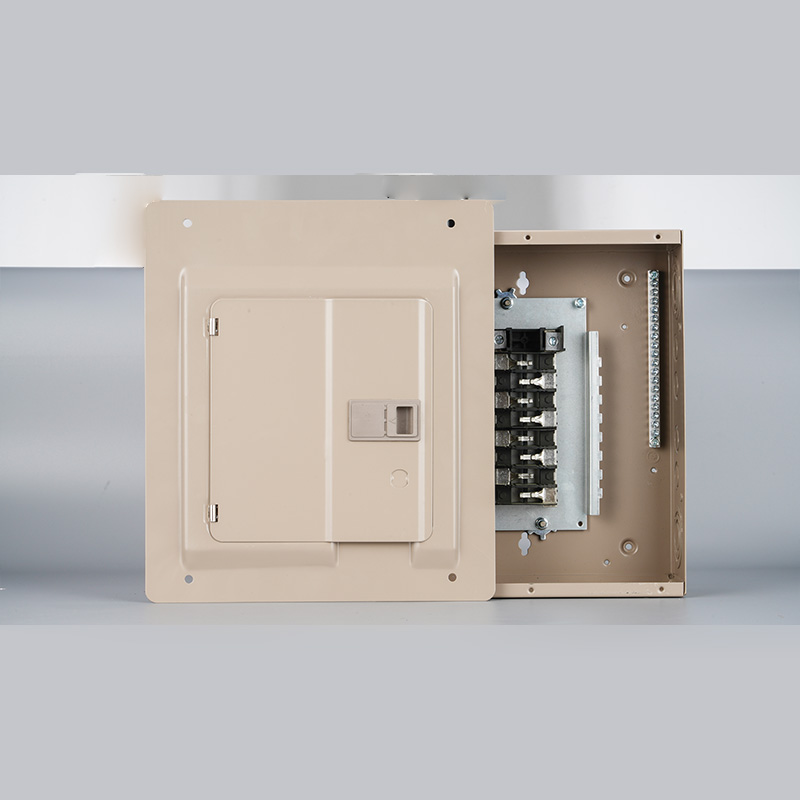

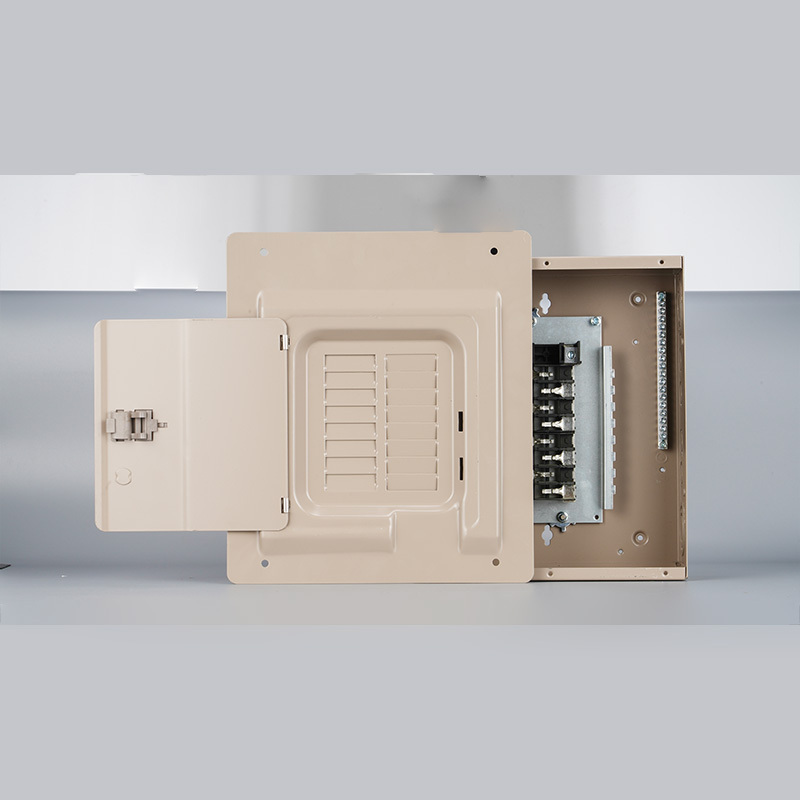

Heavy-Duty Metal Enclosure Thickened steel plate structure, impact resistant, uniform beige anti-rust coating, long service life in indoor dry environments. Hinged front door easy to open and close, small hidden cover prevents children accidental touch.

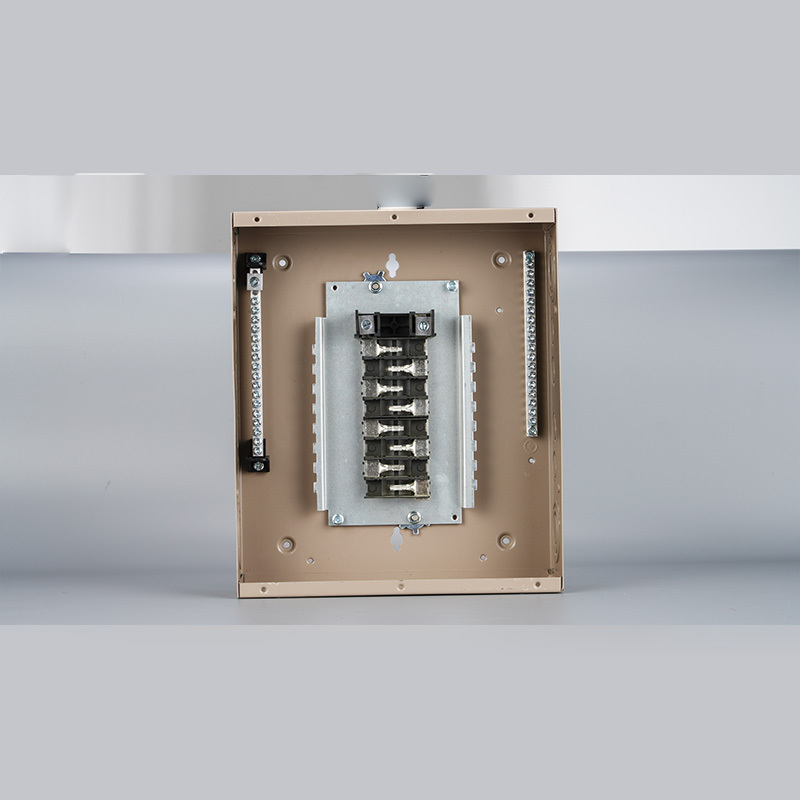

Complete Copper Bus Bars Included Factory pre-assembled full-length copper neutral and grounding bars, no extra accessories needed; dense terminal screws allow neat, stable wiring for multiple branch wires.
Dual Version Optional Two versions for selection: Main Lug Only (MLO) for external main switch matching; Main Breaker panel integrated with main circuit breaker for direct grid connection.

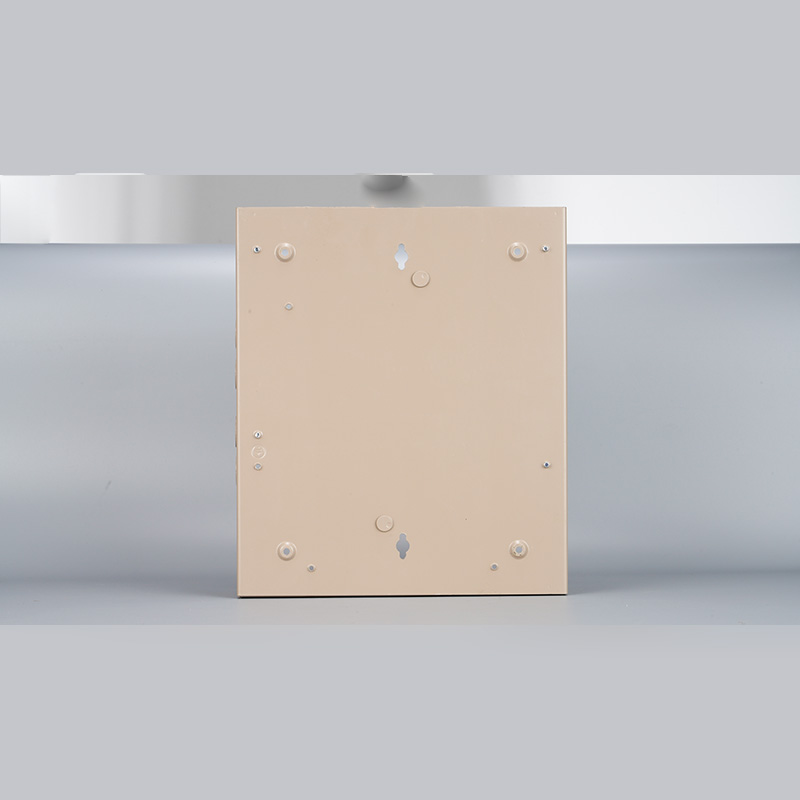

Easy Installation & Wiring Reserved multiple mounting holes on box body for wall fixing; internal large wiring space leaves enough room for cable arrangement, simplifies electrician wiring work and shortens construction time.
Safe Protection Design Internal insulation partition separates live parts, avoids short circuit risk; closed door structure isolates live components to reduce electric shock hazard during daily use.
4. Application Scenarios
New residential building power distribution system
Old house electrical circuit renovation
Villa, apartment, townhouse indoor power panel
Small store, office, garage, workshop branch power control
North America standard construction electrical supporting projects
5. Package & Delivery
Standard Export Packing: Each load center packed in independent carton, outer carton reinforced for sea transportation
Customization Support: Box color printing, internal accessory adjustment, logo printing on door acceptable for bulk orders
Loading Port: Ningbo / Shanghai Port, fast lead time for mass orders
QC Inspection: 100% dimensional and structure test before shipment to guarantee quality
6. FAQ
Q1: Can this load center use other brands of breakers besides CH type? A: This panel is specially designed for CH series plug-on breakers, other brand breakers with different mounting structures are not compatible. Q2: Is this panel suitable for outdoor installation? A: This is indoor type load center without waterproof function, we recommend installing it in dry indoor space only; outdoor waterproof model can be customized upon request. Q3: What’s the difference between MLO and Main Breaker version? A: MLO (Main Lug Only) has no built-in main breaker, you need to match an external main switch; Main Breaker version comes with reserved space for integrated main breaker inside the box. Q4: Can you print our brand logo on the panel door? A: Yes, OEM logo printing is supported when order quantity reaches our MOQ.
