ansi meter socket single phase three phase

Author : junke socket meter

Update time : 2025-07-27 08:58:35

What is a meter socket

A meter socket, also known as a meter base or meter pan, is the enclosure that houses the electric meter and provides a secure connection point between the utility company's power supply and a building's electrical system. It acts as the gateway for electricity,it will connect 100A 200A 320A,Single phase ,three phase .

what is a bypass meter socekt

A bypass meter socket is a specialized type of electrical meter socket that allows for the safe removal and replacement of a meter without interrupting power to the building. It achieves this by providing an alternate path for electricity to flow around the meter, enabling workers to perform maintenance or replacements while the building remains energized. 6jaws 13jaws have bypass, when take out kwh meter , the power would not enter user house

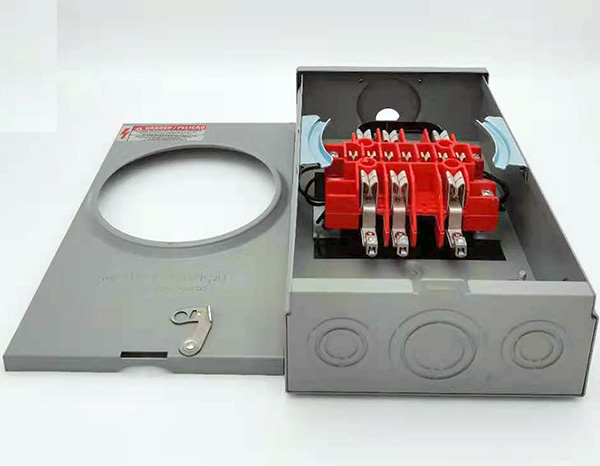

what is a ringless meter socket

A ringless meter socket is a type of electrical meter enclosure where the meter is secured by the cover itself, rather than a separate locking ring as found in older ring-type meter sockets. This design simplifies installation and removal of the meter and allows for easier access to the terminals, often without de-energizing the service. Ringless sockets are commonly used in modern residential and light commercial applications.

what is a 7jaws FM16S meter socket

A 7-jaw meter socket is an electrical component used to connect a utility meter in a 3-phase, 4-wire electrical system. It provides connection points for the three phase lines, the neutral line, and the grounding conductors. The "7 jaws" refer to the seven terminals where these wires connect.

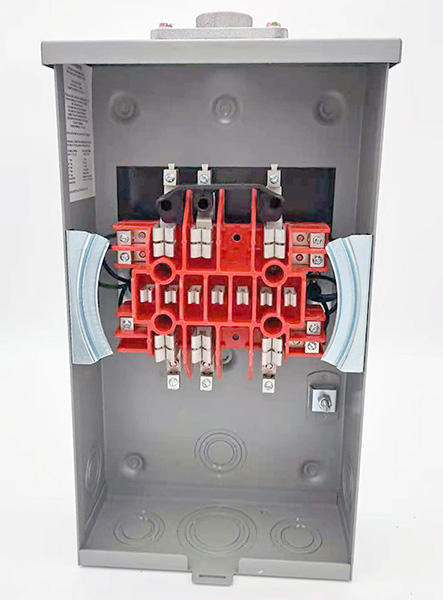

What is FM9S Meter socket

Form 9S Transformer-rated Socket Meter,20A current transformer meter base ,13-jaw configuration, a 600V rating, and a lockable cover for security.

NEMA Type 3R Indoor/Outdoor Enclosure

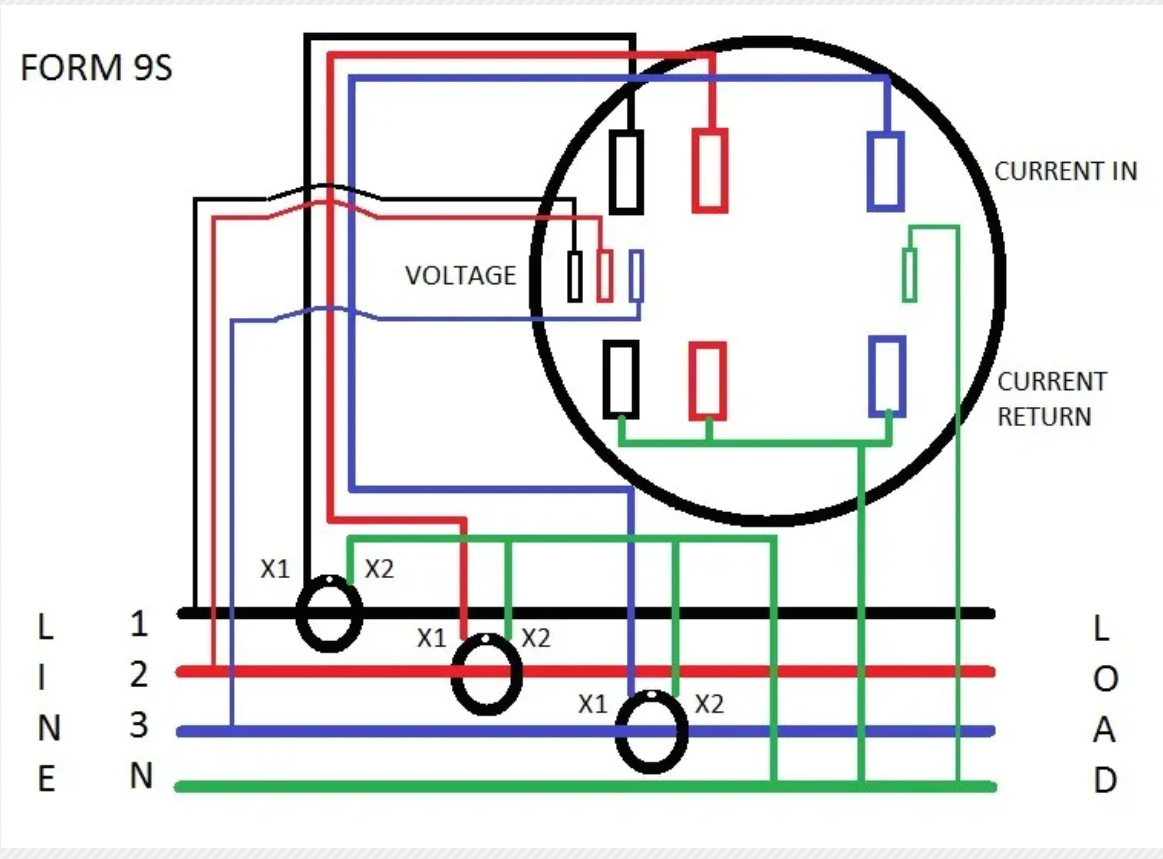

Form 9s Meter Wiring Diagram

what are the different wires? When wiring a form 9s meter you can think about the different wires in groups. You have phase groups and you have voltage a current groups. This means that each phase will have two wires. The voltage wire connects directly to the service wire in this example. The current wire connects to X1 on the CT.

Remember that with the CT’s you need to make sure that the polarity marking or “dot” as it is often called needs to point back towards the Line. Remember dot to pot.
